List of Power Supply Modules
Figure 1. Power Supply Module
.png){kind=spacer}
| PART # | DESCRIPTION | NOMINAL RANGE / OPERATING RANGE |
|---|---|---|
| LV | Low Voltage Power Module | 24 VDC Nominal, 2.5 A, 60 W, 10-36 VDC Operating |
| LV2 | Low Voltage Power Module | 24 VDC Nominal, 2.5 A, 60 W, 10-36 VDC Operating |
| MV | Medium Voltage Power Module | 48 VDC Nominal, 1.25 A, 60 W, 36-72 VDC Operating |
| MV2 | Medium Voltage Power Module | 48 VDC Nominal, 1.25 A, 60 W, 36-72 VDC Operating |
| HV | High Voltage Power Module | Nominal: 100-240 VAC at 50/60 Hz, 1 A, 60 VA, or 100-240 VDC, 1A, 60 W Operational: 85-264 VAC, or 88-300 VDC |
| HV2 | High Voltage Power Module | Nominal: 100-240 VAC at 50/60 Hz, 1 A, 60 VA, or 100-240 VDC, 1A, 60 W Operational: 85-264 VAC, or 88-300 VDC |

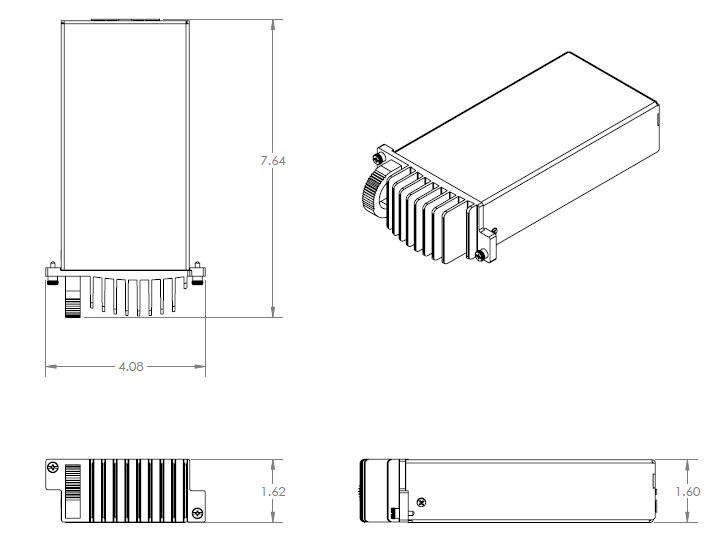

Mechanical Drawing of a Power Supply Module
Figure 2. Mechanical Drawing of a Power Supply Module
All power supply (PS) modules (LV, MV, HV, and HV2) have the same dimensions as shown above.
All dimensions are shown in inches.
