The Raptor chassis may be ordered with Power over Ethernet (PoE) support, in which case an external PoE power supply is required to provide power to the PoE line modules.
PoE supplies
power over the same Ethernet cable that is used for data exchange:

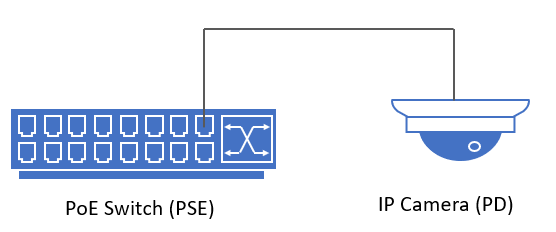

- PoE Switch connected to PD
- PSE (Power Sourcing Equipment)
- PD (Powered Device)
IEEE 802.3bt-2018 PoE++ is supported with up to 60W per port.
The chassis supports up to 720W of PoE, where slots 1-3 may deliver up to a maximum of 240W each.
This section describes the Web UI PoE PSE Status, PoE PSE Chassis Configuration, and the PoE PSE Port Configuration page.
