Web Interface: Upgrade the MicroRAPTOR using TFTP

This section will explain how to upgrade the MicroRAPTOR firmware. This process takes approximately 20 minutes to execute when there is a fast network connection between the TFTP server and the MicroRAPTOR.

To perform the tasks in this section, you will have already logged into the MicroRAPTOR via the Web UI. For all upgrades, it is recommended that user’s backup their current running configuration prior to commencing the upgrade process.

A TFTP server must be installed on a device with network connectivity to the MicroRAPTOR. There are a number of commercial and free TFTP server options available. For this example Tftpd64 was used as the server. It may be downloaded from this site: https://pjo2.github.io/tftpd64/. The switch has also be tested using SolarWinds TFTP Server: https://www.solarwinds.com/free-tools/free-tftp-server

Valid Upgrade Paths

Table 1. Upgrade Paths
Model Initial Release Target Release
iMR920 - 1.10.06 is the initial release
iMR920 1.10.06 1.11.06
iMR920 1.10.06 1.12.05
iMR920 1.11.06 1.12.05
iMR920 1.11.06 1.13.05
iMR920 1.12.05 1.13.05
iMR920 1.12.05 1.14.10
iMR920 1.13.05 1.14.10
iMR920 1.13.05 1.15.13
iMR920 1.14.10 1.15.13
Note:

Downgrades to an earlier release are not supported.

If the release that your device is running is not listed in the Supported Upgrade Paths table, it is recommended that the support team is contacted for more detailed instructions.

  1. Install the TFTP server on a machine that has network connectivity to the MicroRAPTOR.
  2. Configure the TFTP server such that its base directory contains the firmware file you wish to upload. Depending on the server software you are using there may be more settings that need to be configured.

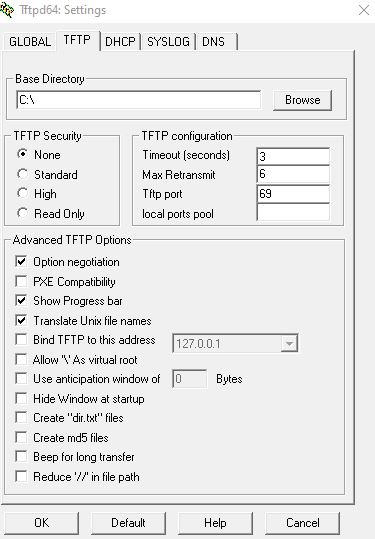

    This is a screen shot of theTftpd64 settings screen.



  3. To Upgrade a Configuration from TFTP navigate to the Upgrade page.

    Go to System > System Upgrade

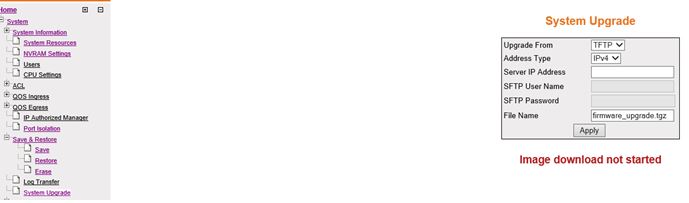

    The upgrade page appears:

    Figure 1. System Upgrade


  4. Set the fields as follows:
    • Upgrade From field—select TFTP.
    • File Name—enter the file name to be downloaded from the TFTP Server.
    • Server IP Address—enter the IP address of the TFTP server.


    The MicroRAPTOR will be upgraded and reloaded automatically. After about 5 minutes the device will be ready for users to login to it.

  5. Click Apply to upgrade the MicroRAPTOR.

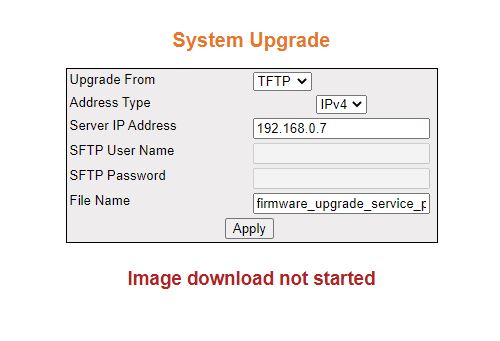

    A timer will appear providing the elapsed time since the upgrade started. The screen will appear similar to the following:

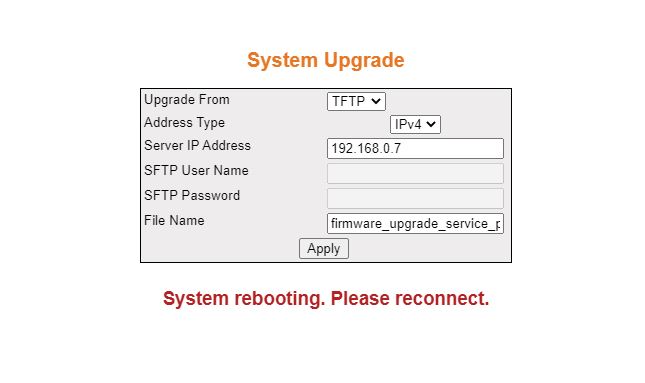

    The screen will eventually change to the following:




The MicroRAPTOR upgrade is complete.
