File Transfer allows the user to upload or download files
to or from remote servers.
To access File Transfer screens, go to .
File Upload
By
default, the tab File Upload displays the File
Upload screen.
Figure 1. File Upload
| Screen Objective |
This screen allows the user to upload a file
from remote server. |
| Navigation |
|
| Fields |
- Transfer Protocol—select
the transfer mode for uploading file to the remote system. The default
option is TFTP. The list contains:
- TFTP—Uploads the file in TFTP (Trivial
File Transfer Protocol) mode.
- SFTP—Uploads the file in SFTP (SSH
File Transfer Protocol) mode.
- Address Type—select the IP Address type
of the machine from which the file is to be downloaded. The default
option is IPv4.
- Server IP Address—enter the IP address
of the machine from which the file is to be downloaded.
|
| Fields (cont) |
- SFTP User Name—enter
the user name required for uploading file in SFTP mode.
This field is a string with size varying from 1 to 20.
Note: This
field is enabled when Transfer Protocol is set as SFTP.
- SFTP Password—enter the password required
for uploading file in SFTP mode.
This field is a string with the maximum size 20.
Note: This field
is enabled when Transfer Protocol is set as SFTP.
- Remote File Name—enter the file name
in which the syslogs are saved in the remote system. The default
file name is is5com.log. This field is a string of size varying
from 1 to 128.
- Source File Name—enter the filename or
filename with path to which the local file need to be copied in
the remote system.
- Startup config—select the function Startup
configuration. A startup configuration contains configuration information
that the iS5com uses at reboot. This command takes a backup of the
initial configuration in flash or at a remote location.
|
| Buttons |
- Apply—modifies
attributes and saves new configuration.
- Reset—resets to default value for respective
fields and discards all user inputs.
|
File Download

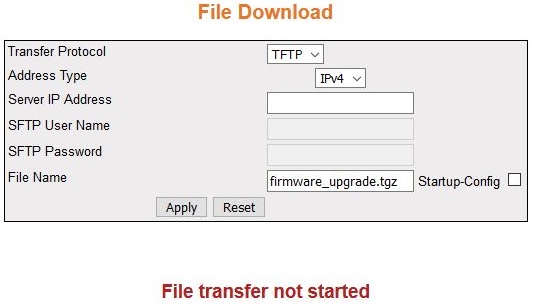

Figure 2. File Download
| Screen Objective |
This screen allows the user to configure the
file download details. |
| Navigation |
|
| Fields |
- Transfer Protocol—select
the transfer mode for downloading file to the remote system. The
default option is TFTP. The list
contains:
- TFTP—Downloads the file in TFTP (Trivial
File Transfer Protocol) mode.
- SFTP—Downloads the file in SFTP (SSH
File Transfer Protocol) mode.
- Address Type—select the IP Address type
of the machine from which the file is to be downloaded. The default
option is IPv4.
- Server IP Address—enter the IP address
of the machine of the file.
- SFTP User Name—enter the user name required
for downloading file in SFTP mode.
This field is a string with size varying from 1 to 20.
Note: This
field is enabled when Transfer Protocol is set as SFTP.
- SFTP Password—enter the password required
for downloading file in SFTP mode. This
field is a string with the maximum size 20.
Note: This field is
enabled when Transfer Protocol is set as SFTP.
- Remote File Name—enter the file name
of the file from the remote system.
- Startup config—select the function Startup
configuration. A startup configuration contains configuration information
that the iS5com uses at reboot. This command backs up the initial
configuration in a flash or at a remote location.
|
| Buttons |
- Apply—modifies
attributes and saves new configuration.
- Reset—resets to default value for respective
fields and discards all user inputs.
|
Diagnostic File
Transfer

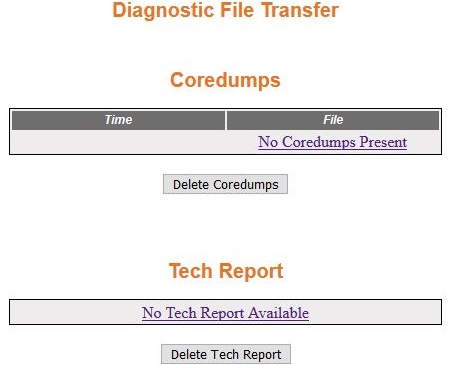

Figure 3. Diagnostic
File Transfer
| Screen Objective |
This screen allows the user to perform diagnostic
file transfer. |
| Navigation |
|
