Basic Firewall Configuration - Getting Started

This section describes how to configure a simple firewall.

This section will begin by enabling a simple firewall. Once enabled, rules and complexity will be added as a means of providing with a greater understanding of how to use the iMX950s firewall capabilities.

For reference the network that will be used for these exercises will be as shown:

1. From a host on interface gig 0/2 you should be able to ping a host on the network at gig 0/3

   ping 10.0.0.2

   You should see som



   ething similar to the following image:
2. Enable the firewall.
   1. Execute the following commands:

      iS5comm# configure terminal

      iS5comm(config)# firewall

      iS5comm(config-firewall)# enable

      iS5comm(config-firewall)# rule BLOCKALL deny any any any priority 20

      iS5comm(config-firewall)# access-group from_wan in BLOCKALL interface gigabitethernet 0/3

      iS5comm(config-firewall)# exit

      iS5comm(config)# exit

      iS5comm# show run firewall

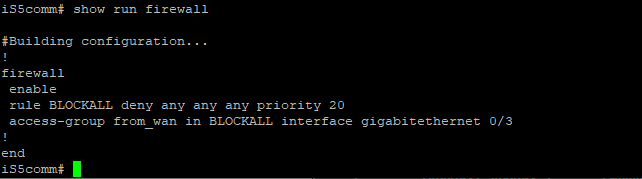

   Text similar to the following will appear in the terminal:




3. Test the firewall from the outside to the inside.
   1. Ping from the 10.0.0.0/8 subnet to 192.168.13.100

   The pings will fail

4. Disable the firewall and repeat Step 3.
   1. Execute these commands

      iS5comm# configure terminal

      iS5comm(config)# firewall

      iS5comm(config-firewall)# disable

      iS5comm(config-firewall)# exit

      iS5comm(config)# exit

   1. Ping from the 10.0.0.0/8 subnet to 192.168.13.100

   The pings will succeed

   .
5. Renable the firewall and verify that pings can pass from the inside to the outside.
   1. Execute these commands

      iS5comm# configure terminal

      iS5comm(config)# firewall

      iS5comm(config-firewall)# enable

      iS5comm(config-firewall)# exit

      iS5comm(config)# exit

   1. Ping from the 10.0.0.0/8 subnet to 192.168.13.0/24 subnet

   The pings will succeed.

6. Note:

   The priority of the rules are important. As soon as a packet is denied it will be discarded.

   The lower the number the higher the priority.
   Add a rule to permit a host on the outside to ping the inside.
   1. Execute the following commands

      iS5comm# configure terminal

      iS5comm(config)# firewall

      iS5comm(config-firewall)# no access-group FROM_WAN in

      iS5comm(config-firewall)# rule FROM_SWITCH permit 10.0.0.2/32 any any priority 2

      iS5comm(config-firewall)# access-group FROM_WAN in FROM_SWITCH,BLOCKALL interface gigabitethernet 0/3

      iS5comm(config-firewall)# exit

      iS5comm(config)# exit

      iS5comm#show running-config firewall

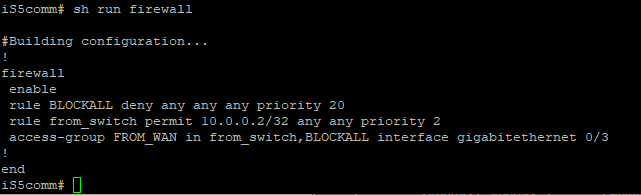

   Text similar to the following will appear:




7. Ping from the host 10.0.0.2 can ping the 192.168.13.0/24 subnet.

   The pings will be successful.

8. Ping from any host on 10.0.0.0/8 except 10.0.0.2 to the 192.168.13.0/24 subnet.

   The pings will fail.

9. Set up rules to allow the Inside to only access a single HTTP address.

   iS5comm# configure terminal

   iS5comm(config)# firewall

   iS5comm(config-firewall)# rule TO_SWITCH permit 192.168.13.100/32 10.0.0.2/32 tcp destport =80 priority 3

   iS5comm(config-firewall)# access-group FROM_PRIVATE out TO_SWITCH,BLOCKALL interface

   gigabitethernet 0/3

   iS5comm(config-firewall)# exit

   iS5comm(config)# exit

   iS5comm# show running-config firewall

   Text similar to the following will be on the terminal:




10. From a host on the 10.0.0.0/24 network ping a host on the 20.168.10.0/24 network.

    The pings will fail.

11. From host 10.0.0.1 attempt to reach a web server on 20.168.10.3.
    Note:

    There is an assumption that there is a web server, running on port 80 at 20.168.10.3, if not you may skip this step.
