Static NAT Configuration

This section describes how to configure, Staic NAT, network address translation

The steps needed to enable the iMX950 security features must have been performed. This document assumes that the steps listed in the Configuring the Security Application section were performed.

This section will begin by enabling static network address translation.

For reference the network that will be used for these exercises will be as shown:



  1. From Host A you should be able to ping Host B

    ping 10.0.0.2

    You should see som

    ething similar to the following image:

  2. In this example static NAT will be used to map the address 192.168.13.100 to 10.0.0.110.
    1. Execute the following commands:

      iS5comm# configure terminal

      iS5comm(config)# set ip nat enable

      iS5comm(config)# interface gigabitethernet 0/3

      iS5comm(config-if)# ip nat static 192.168.13.100 10.0.0.110

      iS5comm(config-if)# exit

      iS5comm(config)# exit

      iS5comm# show ip nat rules

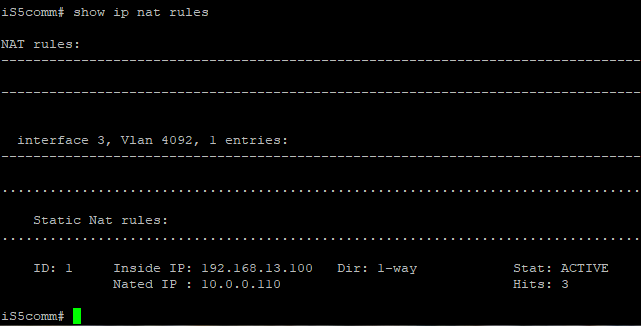

    Text similar to the following will appear in the terminal:



  3. Test the NAT configuration.
    1. Ping Host B(10.0.0.2) from Host A (192.168.13.100)

    The pings will succeed and will be received by Host B (10.0.0.2) as if they came from 10.0.0.110.

  4. Disable the NAT and repeat Step 3.
    1. Execute these commands

      iS5comm# configure terminal

      iS5comm(config)# set ip nat disable

      iS5comm(config)# exit

    2. Ping from the Host B(10.0.0.2) from Host A (192.168.13.100)
    The pings will succeed and will be received by Host B(10.0.0.2) as if they came from IP address 192.168.13.100
  5. To Remove The NAT configuration
    1. Execute these commands

      iS5comm# configure terminal

      iS5comm(config)# interface gigabitethernet 0/3

      iS5comm(config-if)# no ip nat static 192.168.13.100 10.0.0.110

      iS5comm(config-if)# exit

      iS5comm(config)# exit

      iS5comm#

    The NAT configuration will be removed
